Mini PC 1 x Celeron 7305 - RAM 4 GB - SSD 128 GB - HD Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, 2.5 Gigabit Ethernet - Chrome OS - monitor: none - eco black
| Main Specifications | |
|---|---|
| Product Description | ASUS Chromebox 5 SC017UN - mini PC Celeron 7305 1.1 GHz - 4 GB - SSD 128 GB |
| Type | Chromebox - mini PC |
| Processor | 1 x Intel Celeron 7305 / 1.1 GHz (5-core) |
| Cache Memory | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | 4 GB DDR4 SDRAM |
| Hard Drive | SSD 128 GB - PCI Express - M.2 2280 |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | Intel HD Graphics |
| Networking | 1GbE, 802.11a, Wi-Fi 6E, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.3, 2.5GbE |
| OS Provided | Google Chrome OS |
| Color | Eco black |
| Dimensions (WxDxH) | 6.6 in x 6.5 in x 18.1 in |
| Weight | 28.22 oz |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Chromebox |
| Product Form Factor | Mini PC |
| Embedded Security | Titan-C Security Chip |
| Color | Eco black |
| Expansion / Connectivity | |

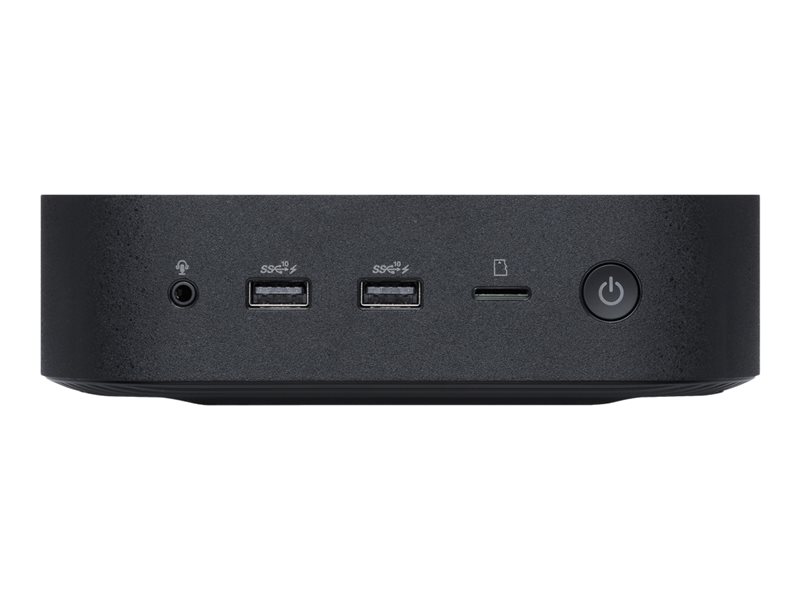

| Interfaces | 2 x USB 3.2 Gen 2 (2 front) ¦ 2 x HDMI ¦ 1 x headphones/microphone (1 in front) ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 ¦ Thunderbolt 4 ¦ DisplayPort 1.4 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| RAM | |
| Installed Size | 4 GB |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 1 (total) / 0 (empty) |
| Configuration Features | 1 x 4 GB |
| Networking | |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8125BG |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.3, 2.5 Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | Google Chrome OS |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 128 GB |
| Interface Type | PCI Express |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 6.5 in |
| Height | 18.1 in |
| Weight | 28.22 oz |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | microSD |
| Processor / Chipset | |
| CPU | Intel Celeron 7305 |
| Clock Speed | 1.1 GHz |
| Number of Cores | 5-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
