DLP projector - 3D - 4000 ANSI lumens - XGA (1024 x 768) - 4:3 - zoom lens - with 1 year Express Exchange Service
| Main Specifications | |
|---|---|
| Product Description | ViewSonic PA503X - DLP projector - zoom lens - 3D |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Built-in Devices | Keypad |
| Bundled Services | 1 year Express Exchange Service |
| Localization | Americas |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 22000:1 (dynamic) |
| Resolution | XGA (1024 x 768) |
| Native Aspect Ratio | 4:3 |
| Color Support | 1.07 billion colors (30-bit) |
| Lens | Zoom lens |
| Lamp Type | 190 Watt |
| Lamp Life Cycle | Up to 5000 hours - normal mode ¦ Up to 15000 hours - economic mode |
| Speakers | Speaker(s) - internal |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 260 Watt |
| Dimensions (WxDxH) | 11.6 in x 8.6 in x 4.3 in |
| Weight | 4.85 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Built-in Devices | Keypad |
| Bundled Services | 1 year Express Exchange Service |
| Localization | Americas |
| Expansion / Connectivity | |

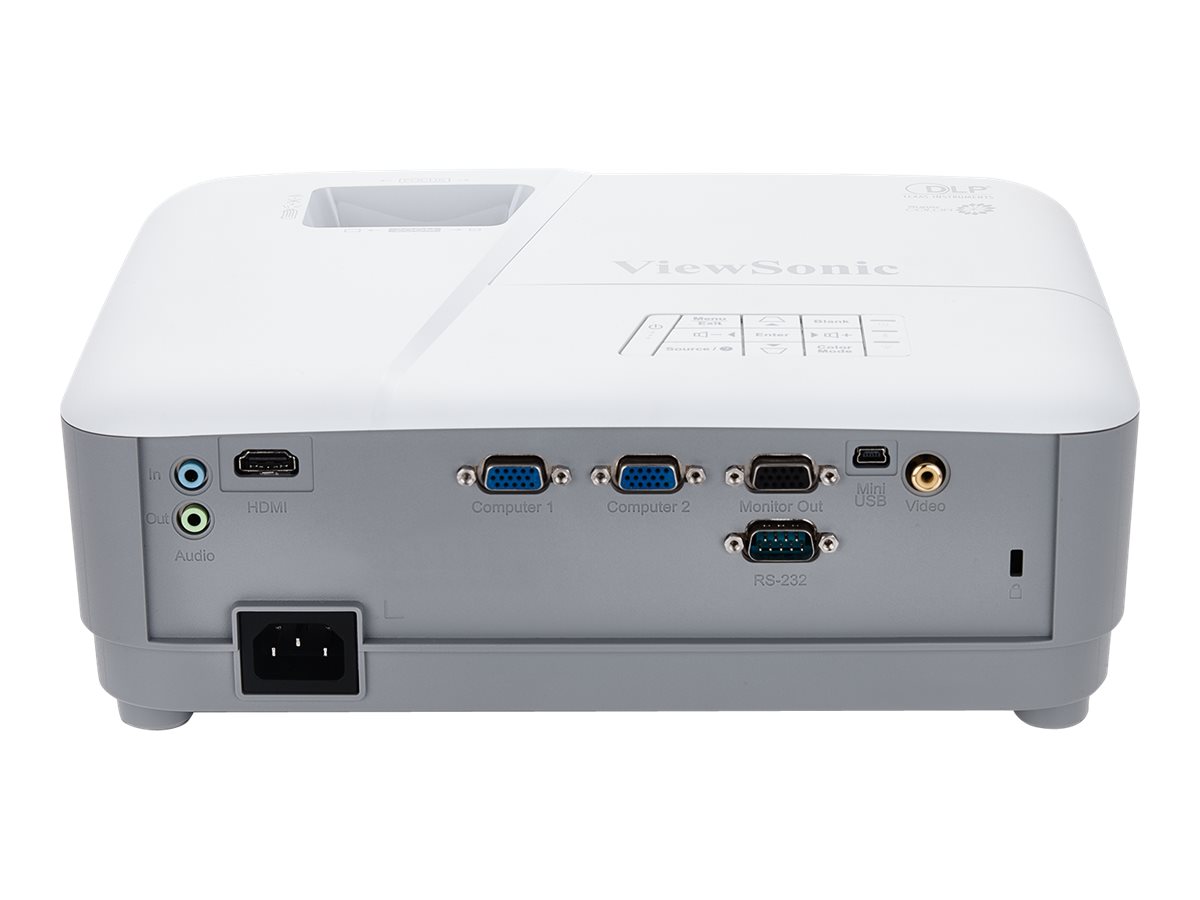

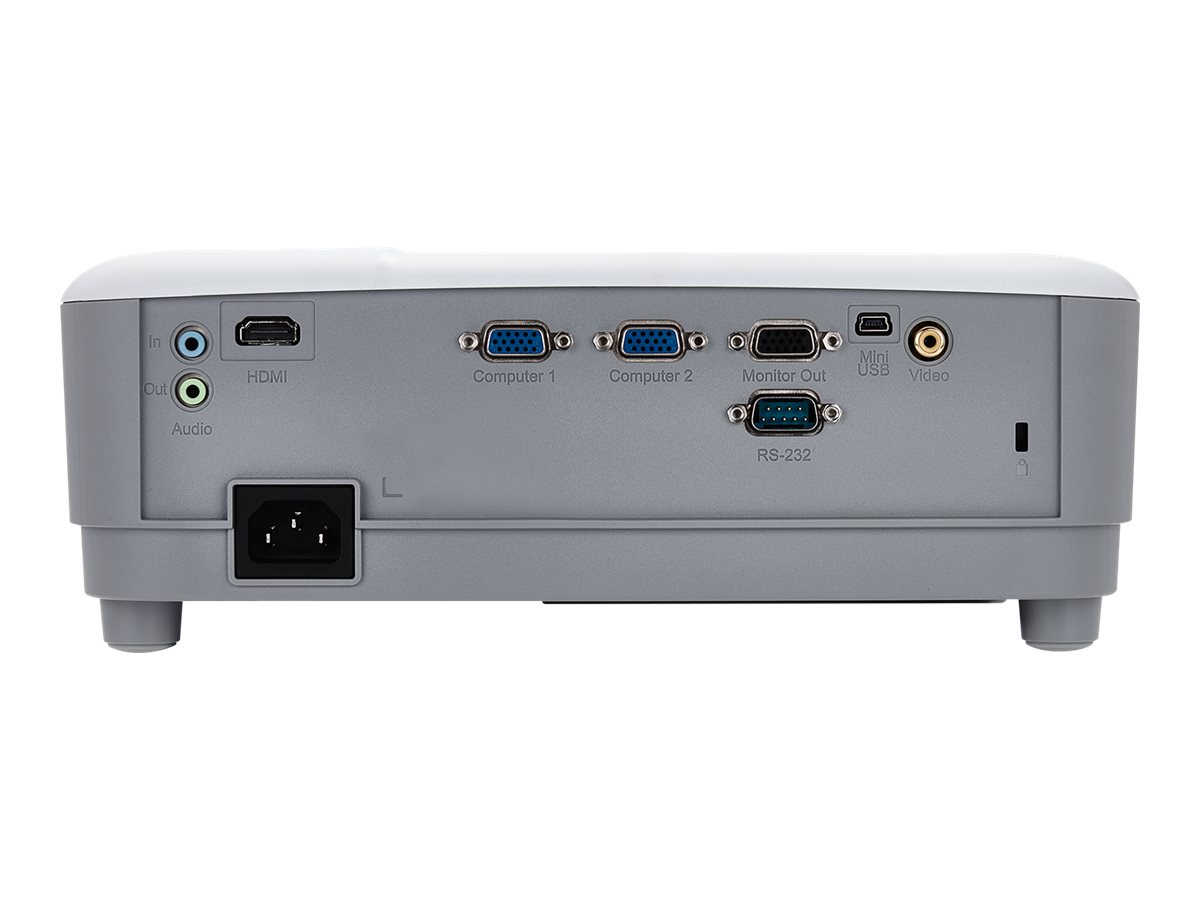

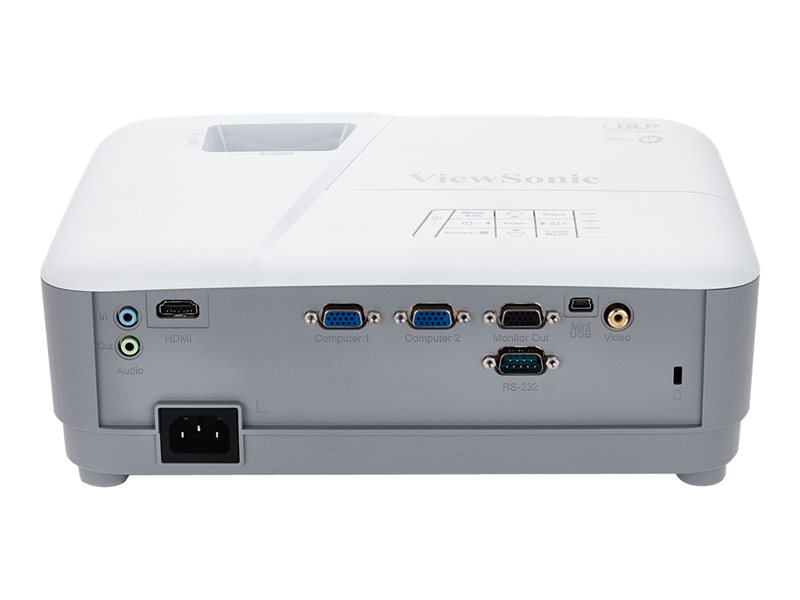

| Interfaces | 2 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x USB - 4 pin mini-USB Type B (management) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x audio line-out - mini-phone 3.5 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years ¦ Limited warranty - lamp - 1 year |
| Miscellaneous | |

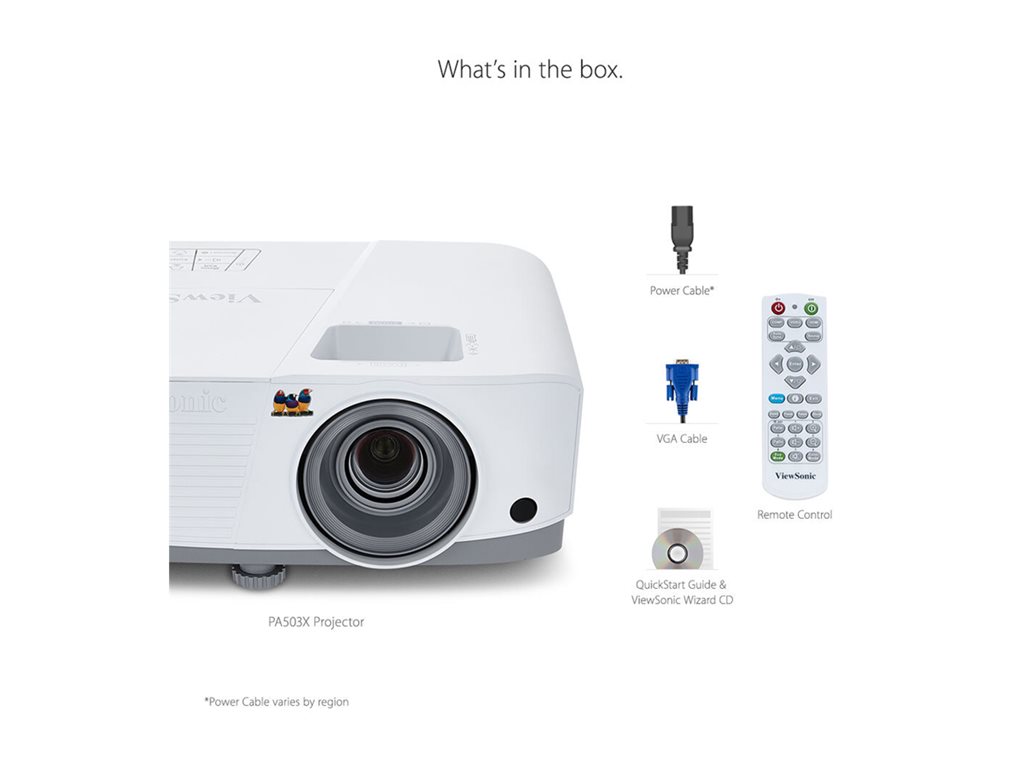

| Included Accessories | Wireless remote control |
| Cables Included | 1 x VGA cable |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | cTUVus, ICES-003, FCC |
| Power | |
| Power Source | AC |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 260 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Software / System Requirements | |
| Software Included | ViewSonic Wizard |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Video Input | |
| Video Interfaces | Composite video, HDMI, VGA |
| Dimensions & Weight | |
| Width | 11.6 in |
| Depth | 8.6 in |
| Height | 4.3 in |
| Weight | 4.85 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.4 in |
| Shipping Depth | 11.8 in |
| Shipping Height | 7.4 in |
| Shipping Weight | 13.67 lbs |
| Projector | |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 22000:1 (dynamic) |
| Image Size | 29.9 in - 300 in |
| Projection Distance | 4 ft - 43 ft |
| Throw Ratio | 1.96 - 2.15:1 |
| Resolution | XGA - XGA (1024 x 768) (native) / 1920 x 1200 (resized) |
| Native Aspect Ratio | 4:3 |
| Color Support | 1.07 billion colors (30-bit) |
| Max Sync Rate (V x H) | 120 Hz x 102 kHz |
| Lamp Type | 190 Watt |
| Lamp Life Cycle | Up to 5000 hours - normal mode ¦ Up to 15000 hours - economic mode |
| Controls & Adjustments | Keystone correction, focus, zoom |
| Features | 6-segment color wheel, Quick Off, SuperEco, ViewSonic SuperColor |
| Lens | |
| Type | Zoom lens |
| Focus Type | Manual |
| Zoom Type | Manual |
| Zoom Factor | 1.1x |
| Keystone Correction Direction | Vertical |
| Vertical Keystone Correction | -40 / +40 |
| Speakers | |
| Type | Internal |
| Sound Output Mode | Mono |
| Output Power / Channel | 2 Watt |
| Speakers | 1 x mixed channel |
